AMPR 2+1+5 Chogori-Type 8-Pin Smart Charging Socket | Ion-Charge Series @ EV2W

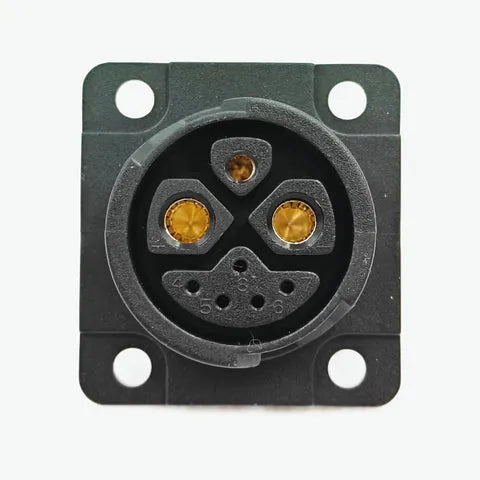

Electric Scooter Charging Socket Chogri Type AMPR
2+1+5 Female – High-Performance EV CAN Bus Power & Signal Connector

If you require a professional-grade connector for high-power and CAN-integrated applications, this AMPR 2+1+5 Female Electric Scooter Charging Socket Chogri Type delivers dependable performance
Advanced 2+1+5 Pin Configuration Explained

This upgraded configuration offers enhanced flexibility
compared to standard CAN connectors.

Pin Distribution:

• 2 Pins – CAN High (CAN_H) & CAN Low (CAN_L)
• 1 Dedicated Auxiliary / Control Pin
• 5 Power / Ground / Auxiliary Signal Pins
• Total Pins: 8

This layout allows integration of:

• CAN communication
• High-current power delivery
• Signal monitoring
• Control or feedback lines

By combining communication and power in one connector, system wiring becomes cleaner, more efficient, and easier to manage.

Designed for EV & High-Power Applications

The AMPR 2+1+5 Female Electric Scooter Charging Socket Chogri Type is ideal for applications requiring:

• High current handling
• Stable CAN communication
• Waterproof protection
• EMI-resistant signal integrity
• Long-term durability

It supports demanding electric mobility systems where
vibration, moisture, and temperature variation are common.

Key Features & Benefits

1️⃣ High Current Carrying Capability

• Power Pins Current Rating: Up to 30–60A (application dependent)
• Signal Pins Rating: 3–5A each
• Voltage Rating: Up to 600V DC (system dependent)

This makes it suitable for:

• EV battery-to-controller connections
• High-voltage charger systems
• Industrial power distribution

2️⃣ Reliable CAN Bus Communication

The 2 dedicated CAN signal pins ensure:

• Stable CAN_H and CAN_L transmission
• Reduced signal interference
• High data accuracy
• Error-free communication between modules

Perfect for:

• Battery Management Systems (BMS)
• Motor controllers
• Vehicle control units
• Industrial PLC systems

3️⃣ IP67 Waterproof & Dustproof Protection

Engineered for harsh environments, this connector offers:

• IP67 sealing (variant dependent)
• Dust-tight construction
• Protection against water immersion
• Weather-resistant housing

Ideal for outdoor EV systems and industrial machinery.

4️⃣ Flame-Retardant UL 94-V0 Housing

Safety is critical in high-voltage systems. The connector
features:

• Nylon + PVC housing
• UL 94-V0 flame-retardant rating
• Self-extinguishing material
• Heat, oil, and moisture resistance

This ensures improved fire safety and long-term reliability.

5️⃣ Gold / Tin Plated High-Conductivity Contacts

• Copper alloy contacts
• Gold-plated option for maximum conductivity
• Tin-plated option for cost-effective durability
• Low contact resistance
• Corrosion-resistant performance

These contacts ensure stable power flow and reliable CAN
data transmission over time.

6️⃣ EMI /RFI Shielding for Signal Stability

Electrical noise can disrupt CAN networks. This connector
includes:

• Aluminum foil shielding
• Drain wire protection
• Reduced electromagnetic interference
• Improved signal integrity

Ensuring smooth communication even in high-power EV systems.

7️⃣ Secure Auto-Locking Mechanism

The connector is designed with:

• Auto-locking system
• Vibration-resistant design
• Shock-resistant structure
• Secure mating with male connector

This prevents accidental disconnection in mobile applications such as EVs and industrial machinery.

Wide Range of Applications

The AMPR 2+1+5 Female Electric Scooter Charging Socket
Chogri Type is suitable for:

Electric Vehicles (EVs)

• Battery pack connections
• Controller communication
• EV charger systems
• High-voltage integration

Battery Management Systems (BMS)

• CAN-based battery monitoring
• Power and signal combined harness
• Cell communication modules

E-Mobility Platforms

• Electric scooters
• E-bikes
• Electric loaders
• Utility EV vehicles

Renewable Energy Systems

• Solar battery storage
• Hybrid energy systems
• Power conversion modules

Industrial Automation

• PLC communication systems
• Robotics
• Industrial control cabinets
• Machine automation networks

Technical Specifications

• Product Name: AMPR 2+1+5 Female CAN Socket
• Connector Type: Female Socket (Rugged M-Series)
• Pin Configuration: 2 CAN + 1 Auxiliary + 5 Power/Signal
• Total Pins: 8
• Interface: CAN Bus
• Current Rating: Power Pins: Up to 30–60A, Signal Pins: 3–5A
• Voltage Rating: Up to 600V DC
• Housing Material: Nylon + PVC (UL 94-V0 Flame Retardant)
• Contact Material: Gold-Plated / Tin-Plated Copper
• Cable Compatibility: Power 8–12 AWG (variant dependent)
• Signal:20–22 AWG
• Waterproof Rating: Up to IP67
• Shielding: Aluminum Foil + Drain Wire
• Operating Temperature: -40°C to +125°C
• Mounting Options: Panel Mount / Cable Type
• Cable Length (Pre-Wired Variant): Approx. 500mm

⚡Product Details

• Brand: Generic
• Dimensions: ~27mm in length.
• Weight: 25 g
• Mounting Type: Cable Mount or Panel Mount.
• Material: Impact-resistant plastic with gold or tin-plated contacts

Built for Harsh & Demanding Environments

This connector performs reliably in:

• Extreme heat and cold
• High vibration environments
• Oil and moisture exposure
• Heavy industrial conditions
• Outdoor EV applications

The combination of waterproof sealing, flame-retardant
housing, and secure locking ensures long service life and reduced maintenance.

Why Choose AMPR 2+1+5 Female CAN Socket?

• Integrated power + CAN communication
• High current handling capacity
• 600V DC rated
• IP67 waterproof protection
• UL 94-V0 flame-retardant housing
• EMI shielded for signal integrity
• Secure locking mechanism
• deal for EV, BMS, and industrial use
• Durable, long-lasting performance

Reliable Connectivity for Critical Systems

Whether you are designing an electric vehicle, upgrading a battery system, or building an industrial CAN network, the AMPR 2+1+5 Female Electric Scooter Charging Socket Chogri Type provides secure power distribution and stable communication in one compact solution.

Engineered for performance, safety, and durability, it is the ideal connector choice for demanding EV and industrial applications.

Upgrade your system with a high-performance Electric Scooter Charging Socket Chogri Typedesigned for modern electric and automation technology.

Package Includes

1 × AMPR 2+1+5 Electric Scooter Charging Socket Chogori
Type  (Bulk quantity options available)
