Bridge the Gap Between Power and Intelligence
Does your smart scooter refuse to charge despite the charger being plugged in? Smart EVs require a stable data "handshake" before the BMS allows current to flow. The Ion-Charge Series @ EV2W features the AMPR 2+4 Chogori-Type Socket—a technician-vetted interface that combines two high-speed CAN-Bus signal lines with four heavy-duty power pins in a single, monsoon-ready housing.
Troubleshooting: Why is my "Smart" charger showing a communication error?
Most "handshake" failures are caused by oxidized signal pins or moisture ingress inside the 6-pin port. The Ion-Charge Series solves this with Gold-Plated Signal Contacts and a precision-molded IP67 seal. This ensures that the CAN_H and CAN_L signals remain crystal clear, preventing the "Charger Not Found" errors common in smart scooters.
Vehicle & System Compatibility
This 6-pin Chogori-style socket is technician-vetted for:
- Smart Electric Scooters: High-end models requiring BMS-to-Charger data communication.
- CAN-Bus Systems: Compatible with all 2+4 signal/power configurations for real-time battery diagnostics.
- Industrial Robotics: Ideal for AGVs and automation systems where power and data must share one rugged connector.
- Local Pickup: Available for fast India-wide shipping or same-day pickup at our Jabalpur EV center.
The EV2W Vetting Standard
- Monsoon-Shield IP67 Sealing: We verified the compression gasket. It is engineered to withstand high-pressure water spray, ensuring your charging pins stay dry even if the scooter is parked in heavy rain.
- High-Amp Thermal Stability: Vetted for 50A peak power delivery. The copper-alloy power pins are treated to resist heat deformation, keeping the housing intact during high-speed rapid charging.
- UV-Stable Polymer: Vetted for the Indian sun. The outer casing is made of impact-resistant, UV-stabilized nylon that won't become brittle or crack after a summer in 45°C heat.
Technical Specifications

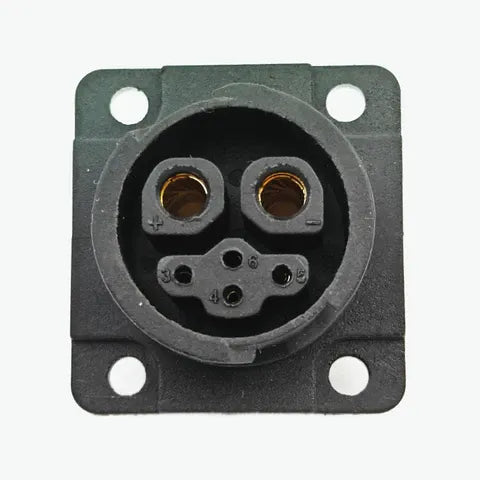

- Pin Layout: 2 Signal Pins (CAN-Bus) + 4 Power/Ground Pins
- Waterproof Rating: IP67 (Dust & Water Submersion Resistant)
- Max Current: 50A (Power) / 5A (Signal)
- Connector Type: Female Panel Mount (Chogori/AMPR Compatible)
Ion-Charge Series vs. Generic Unbranded Sockets
| Feature | Ion-Charge AMPR 2+4 @ EV2W | Generic Unbranded Sockets |
|---|---|---|
| Data Integrity | ✅ Shielded CAN-Bus (Vetted) | ❌ High Signal Noise/Errors |
| Water Protection | ✅ True IP67 Rated | ❌ Basic Splash Proof Only |
| Terminal Coating | ✅ Gold-Plated (No Corrosion) | ❌ Basic Nickel / Tin |
The Ion-Charge AMPR 2+4 Smart Socket @ EV2W is the professional choice for intelligent EV repair. Our technicians recommend this socket to ensure your BMS and charger stay in perfect sync. Buy online today for a smarter, more reliable charge.
Product additional information
Product additional information
🔌 AMPR 2+4 Electric Scooter Charging Socket Chogori Type Application: Automotive
Whether you are building an electric vehicle platform, designing an industrial control system, or maintaining an automotive CAN network, this connector provides the reliability your system demands.
⚡ Engineered for Stable CAN Bus Communication
The AMPR 2+4 Female CAN Socket is purpose-built for Controller Area Network (CAN) communication systems, supporting precise and interference-resistant signal transmission.
Dedicated CAN Signal Pins
The connector includes dedicated:
- CAN High (CAN_H)
- CAN Low (CAN_L)
These pins ensure accurate differential signal transmission, which is essential for:
- Real-time controller communication
- Sensor data exchange
- Battery monitoring systems
- Inverter and motor controller integration
Stable CAN communication minimizes data loss, prevents system faults, and enhances overall EV safety and automation efficiency.
🔌 2+4 Pin Configuration – Flexible Power & Signal Integration
The 2+4 pin design provides both communication and auxiliary support.
- 2 Pins → CAN_H & CAN_L (Data Communication)
- 4 Auxiliary Pins → Power, Ground, or Additional Signal Lines
This flexible configuration simplifies wiring harness design and reduces the need for multiple connectors. Engineers and system integrators benefit from:
- Cleaner wiring layouts
- Reduced installation complexity
- Improved system reliability
- Compact integration into tight enclosures
It is ideal for applications where both data and low-voltage power transmission are required in one secure interface.
🛡️ Rugged Construction for Harsh Automotive & Industrial Environments
EV and industrial systems operate in demanding conditions such as:
- High vibration
- Temperature fluctuations
- Dust and debris exposure
- Moisture and humidity
- Outdoor installations
The AMPR 2+4 Female CAN Socket features a high-strength insulated housing designed to protect internal contacts from mechanical stress and environmental damage.
Many variants offer IP67 waterproof and dustproof protection, making the connector suitable for:
- Electric vehicles
- Outdoor industrial panels
- Agricultural machinery
- Construction equipment
- Robotics platforms
This protection rating ensures resistance against water splashes, rain, dust particles, and contaminants — maintaining uninterrupted communication.
🔧 High-Quality Contact Plating for Superior Conductivity
Reliable CAN communication depends on stable electrical contact. This connector is available with:
✔ Gold-Plated Contacts
- Excellent corrosion resistance
- Low contact resistance
- Ideal for low-signal CAN applications
- Superior long-term reliability
✔ Tin-Plated Contacts
- Durable and cost-effective
- Strong conductivity
- Suitable for standard automotive applications
Both options are designed to maintain signal integrity and reduce electrical losses, ensuring accurate data transmission across the CAN network.
🔒 Vibration-Resistant & Secure Mating Design
Electric vehicles and industrial equipment are constantly exposed to mechanical movement. A loose connector can result in:
- Data interruption
- Signal noise
- System malfunction
- Intermittent faults
The AMPR 2+4 Female CAN Socket is engineered for secure locking with its compatible male connector. The precise contact alignment and locking mechanism ensure:
- Firm electrical connection
- Resistance to accidental disconnection
- Stable performance under vibration
- Reduced risk of communication errors
This makes it ideal for EV motor controllers, BMS modules, and industrial automation systems.
🌡️ Wide Operating Temperature Range
The connector is built to operate in extreme environments:
- Operating Temperature: -40°C to +125°C This wide range makes it suitable for:
- Electric vehicles exposed to outdoor climates
- High-heat industrial machinery
- Cold storage automation systems
- Battery management systems under load
Its thermal resilience ensures consistent performance in both freezing and high-temperature environments.
🏭 Wide Range of Applications
The AMPR 2+4 Female CAN Socket is widely used in:
🚗 Electric Vehicles (EVs)
- Motor controllers
- Inverters
- Battery packs
- Charging systems
🔋 Battery Management Systems (BMS)
- Cell monitoring modules
- Data logging units
- Protection circuits
🤖 Robotics & Automation
- Autonomous machines
- Industrial robotic arms
- AGVs (Automated Guided Vehicles)
🏗️ Industrial Control Systems
- PLC communication networks
- Control panels
- Sensor networks
Its versatility makes it a critical component in both mobile and stationary systems.
📊 Technical Specifications
- Socket Type: AMPR 2+4 Female
- Pin Configuration: 6 Pins (2 CAN + 4 Auxiliary)
- Interface: CAN Bus
- Contact Plating: Gold / Tin
- Housing Material: High-Grade Insulated Plastic
- Protection Rating: Up to IP67 (Variant Dependent)
- Operating
Temperature: -40°C to +125°C - Cable Length: Approx. 500mm (Pre-wired Version)
- Applications: EV, Automotive, BMS, Robotics, Industrial Control
⚡ Product Details
- Brand: Generic
- Dimensions: ~27mm in length.
- Pin Configuration: 2 pins for CAN H/L + 4 auxiliary pins.
- Mounting Type: Cable Mount or Panel Mount.
- Material: Impact-resistant plastic with gold or tin-plated contacts.
Package Includes
- 1 × AMPR
2+4 Electric Scooter Charging Socket Chogori Type
(Bulk quantity options available)
